MSD15-4812
  • image of DC DC Converters> MSD15-4812
MSD15-4812
Product_Category
DC DC Converters
Manufacturer
Volgen (Kaga Electronics USA)
Type
DC DC CONVERTER +/-12V 15W
Encapsulation
Packages
Tube
RoHS
YES
Price
$31.1500
{{title}}
{{description}}
captcha
{{btnStr}}
Specifications
PDF(1)
TYPEDESCRIPTION
MfrVolgen (Kaga Electronics USA)
SeriesMS (15W)
PackageTube
Product StatusOBSOLETE
Package / Case6-DIP Module
Size / Dimension1.10" L x 1.00" W x 0.39" H (27.9mm x 25.4mm x 9.9mm)
Mounting TypeThrough Hole
TypeIsolated Module
Operating Temperature-25°C ~ 71°C
ApplicationsITE (Commercial)
Voltage - Input (Max)75V
Approval AgencyIEC
Current - Output (Max)600mA, 600mA
Voltage - Input (Min)36V
Voltage - Output 112V
Voltage - Output 2-12V
Power (Watts)15 W
Number of Outputs2
Voltage - Isolation1.5 kV
Standard Number60950-1
related

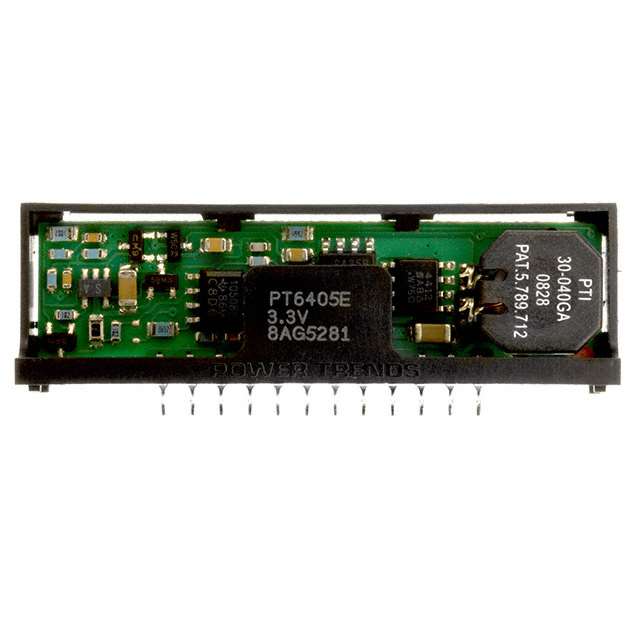

PT6405B
PT6405B Texas Instruments
PT3106A
PT3106A Texas Instruments

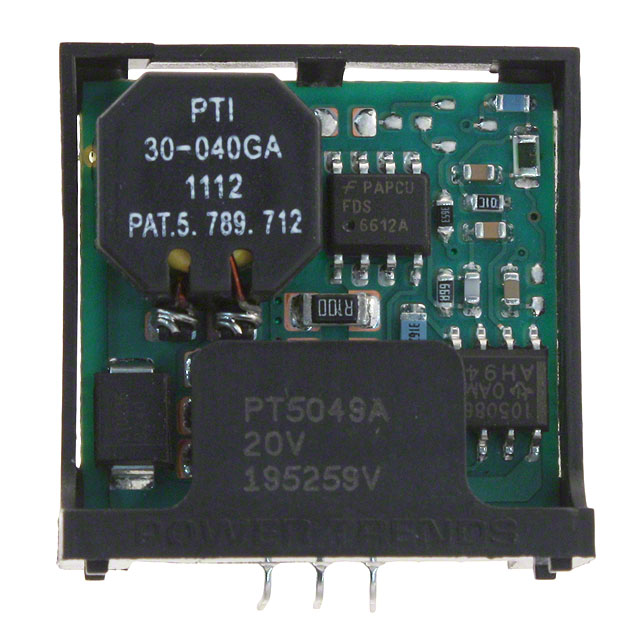

PT5041J
PT5041J Texas Instruments
PT78ST106V
PT78ST106V Texas Instruments

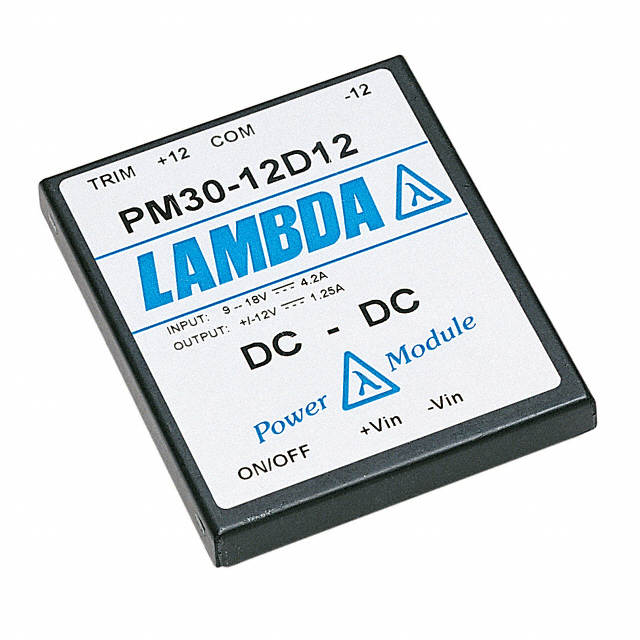

PM30-12T0512
