08M36-03-1-08S

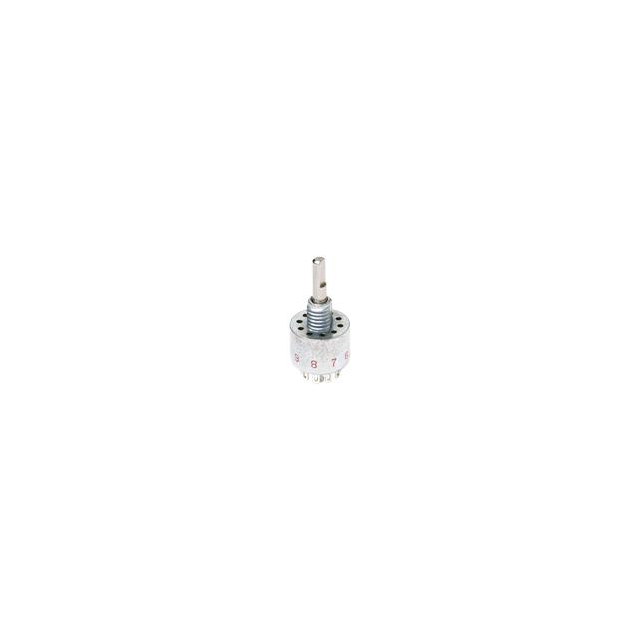

  • image of Rotary Switches> 08M36-03-1-08S
08M36-03-1-08S
Product_Category
Rotary Switches
Manufacturer
Grayhill, Inc.
Type
SWITCH ROTARY 8POS 250MA 115V
Encapsulation
Packages
Bulk
RoHS
YES
Price
$101.0500
{{title}}
{{description}}
captcha
{{btnStr}}
Specifications
TYPEDESCRIPTION
MfrGrayhill, Inc.
Series08
PackageBulk
Product StatusACTIVE
Contact FinishGold
Current Rating (Amps)250mA (AC/DC)
Mounting TypePanel Mount
Number of Positions8
Termination StyleSolder Lug
Actuator Length9.53mm
Actuator TypeFlatted (3.17mm Dia)
Angle of Throw36°
Number of Decks3
Number of Poles per Deck1
Circuit per DeckSP8T
Contact MaterialSilver Alloy
Contact TimingShorting (MBB)
Index StopsFixed
Depth Behind Panel38.00mm
Voltage Rating - AC115 V
Voltage Rating - DC28 V
